Your premises requires a large number of parking spaces, but there is only limited floor space? The automatic parking systems from KLAUS Multiparking provide several parking levels and utilize the floor space of an object optimally. The systems can be designed as both over-ground and underground system or as a combination of both. The vehicle height in both systems is freely selectable but must be uniform.

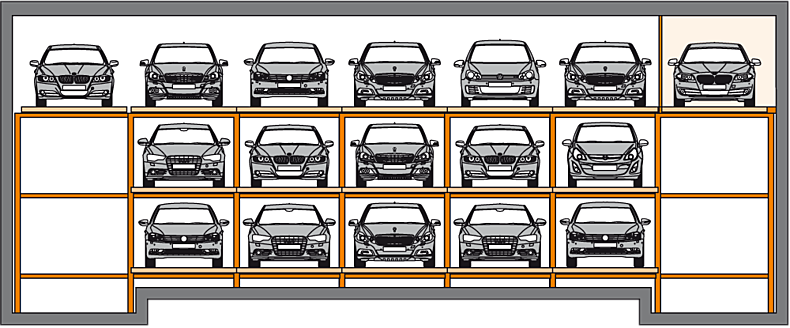

MasterVario F2
The one-row surface system with elevator and horizontal conveying unit can be designed with up to 5 levels depending on the number of parking spaces per level. By using our MasterVario F2 up to 50 parking spaces per system are possible.
In addition to standard car dimensions and weights, also special solutions are possible upon request. And, of course, individual project adjustment is also possible in many cases.

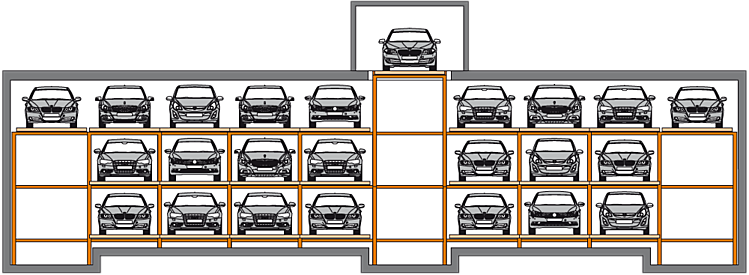

MasterVario F3
The two-row surface system with elevator and horizontal conveying units can be designed with up to 5 levels depending on the number of parking spaces per level. The MasterVario F3 provides parking space for up to 50 cars per system.
In addition to standard car dimensions and weights, also special solutions are possible upon request. And, of course, individual project adjustment is also possible in many cases.
SPECIFICATION
- For 10 to 50 vehicles
- Floor space required: minimal
- System variants: above and / or underground
- Vertical levels: up to 5 parking levels
- Horizontal levels F2: row of 4 to 8 vehicles per parking levels
- Horizontal levels F3: 2 to 5 rows per parking levels, max. 8 vehicles per row
- Vehicle measurements: length 520 cm, width 215 cm
(other dimensions optionally available),
height as required, but standard height - Feasible standard version: 2.500 kg, higher loads can be
accommodate on request by option - Lift: with horizontal and vertical conveyor unit
- Control: access control via transponder, remote control
- Transfer cabin: Arrangement on the ground floor or in the basement
- Changer: with horizontal and vertical hoisting device
- Vehicle turntable optionally availableINVESTMENT BENEFIT
KEY ADVANTAGES AT A GLANCE
- Optimal access times
- Accommodates vehicles in safety
- Anti-theft and damage protection
- Safe access to car park without narrow ramps or dark access routes
- Enclosed area can be halved in comparison to conventional parking spaces
- Slashes the space required for ramps and lane widths
- Economising on parking levels and equipment required (lighting, ventilation, sprinklers)
- Reduced construction time
- Exploit the construction space saved for additional parking spaces or for other commercial purposes
FIELD OF APPLICATION
Residential and commercial buildings, semi-detached houses, office buildings, underground parking lot, hotels, long-time parking
