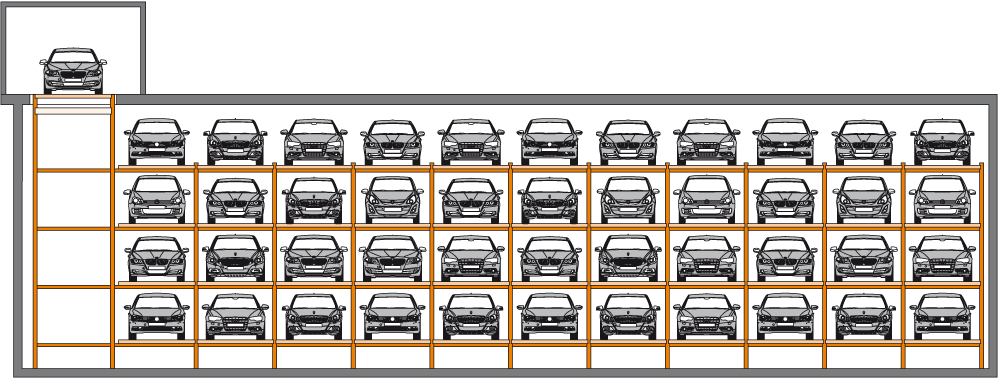

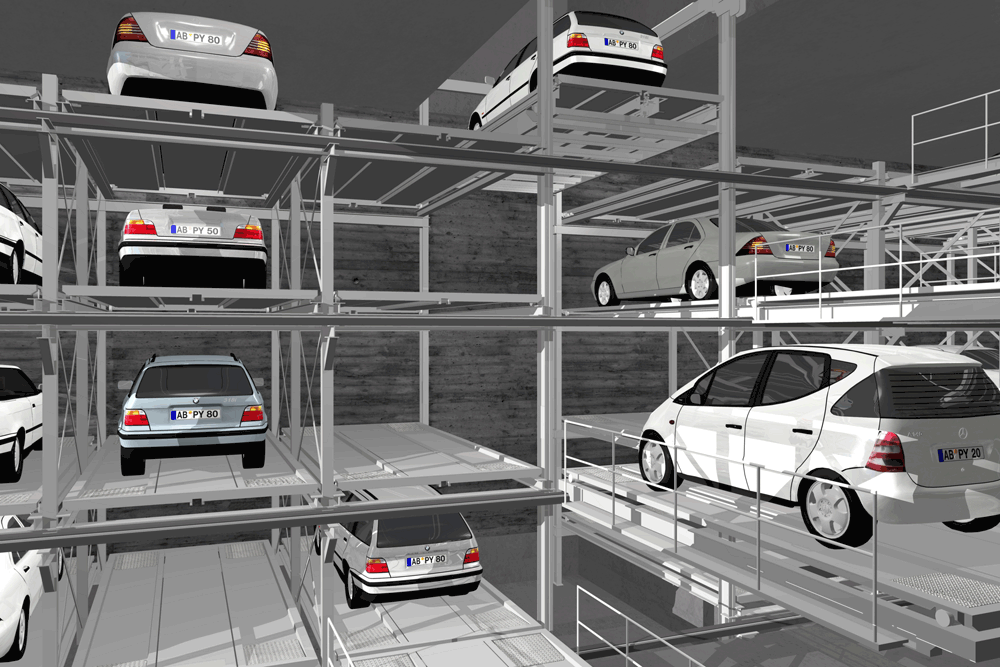

The elevator/shuttle systems do not only save space but also time: One or several elevators move the vehicles to the upper or lower parking levels, where they are taken over by a shuttle, which distributes the vehicles quickly over the parking level. The shuttles and elevators can work at the same time ensuring excellent access times despite the large number of parking spaces.

MasterVario LS

The elevator/shuttle system MasterVario LS provides similarly flexible features as the shelf system R3C and R3L,

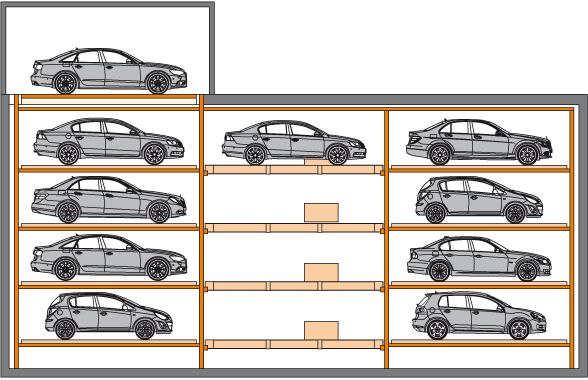

but they have the advantage that they can be used for a larger number of parking spaces. The flexible arrangement of one or multiple elevators for vertical transport and the use of independent shuttles taking over the horizontal distribution of the cars in the storage area allow a larger number of parking spaces, for which normally multiple R3C / R3L system would be necessary. The arrangement in the levels can be as one-row or two-row-system parallel to the shuttles.
The MasterVario LS is the right choice for rectangular premises with large floor space where a large number of parking spaces is to be implemented. From standard cars to SUVs – the MasterVario LS recognizes the height of your vehicle and finds the suitable parking space. In addition to standard car dimensions and weights, also special solutions are possible upon request. And, of course, individual project adjustment is also possible in many cases.

SPECIFICATION

• From at least 80 vehicles
• Floor space required: rectangular

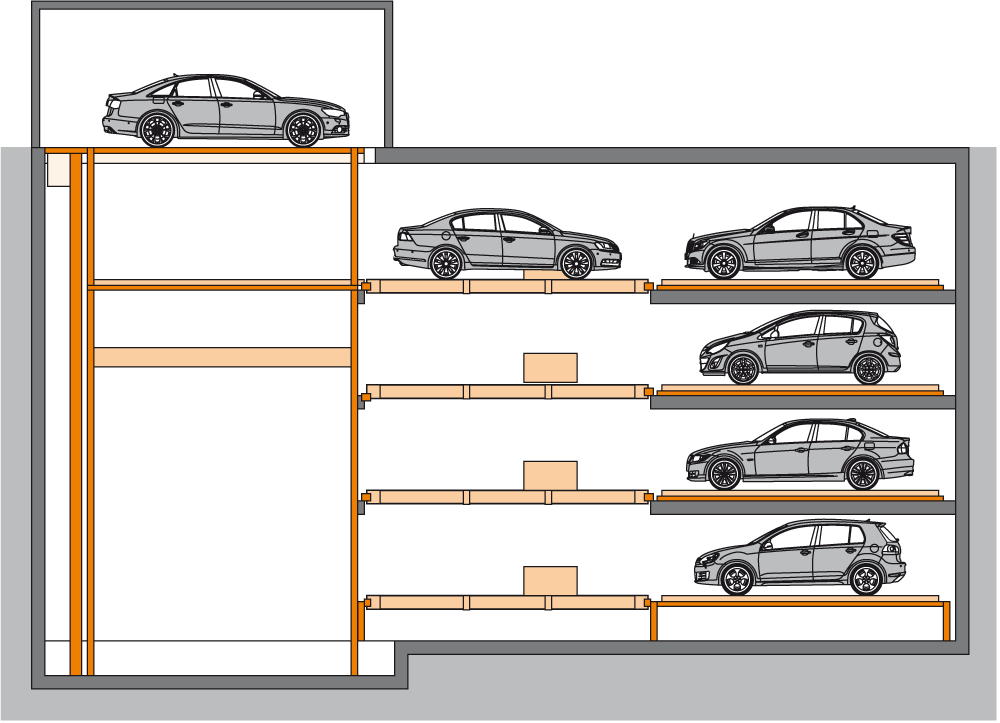

• System variants: above and / or underground
• Vertical levels: 2 to 10 parking levels

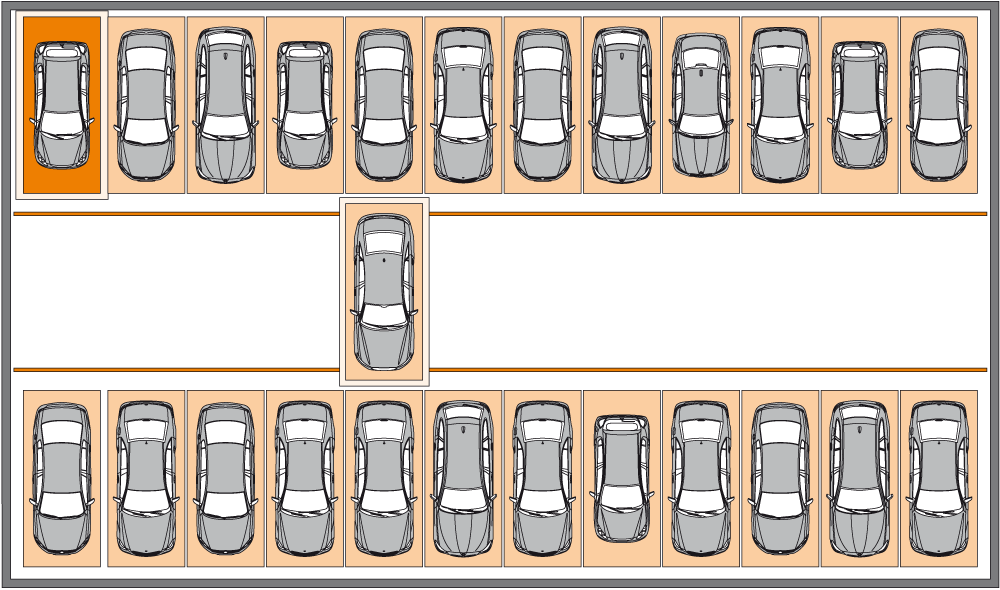

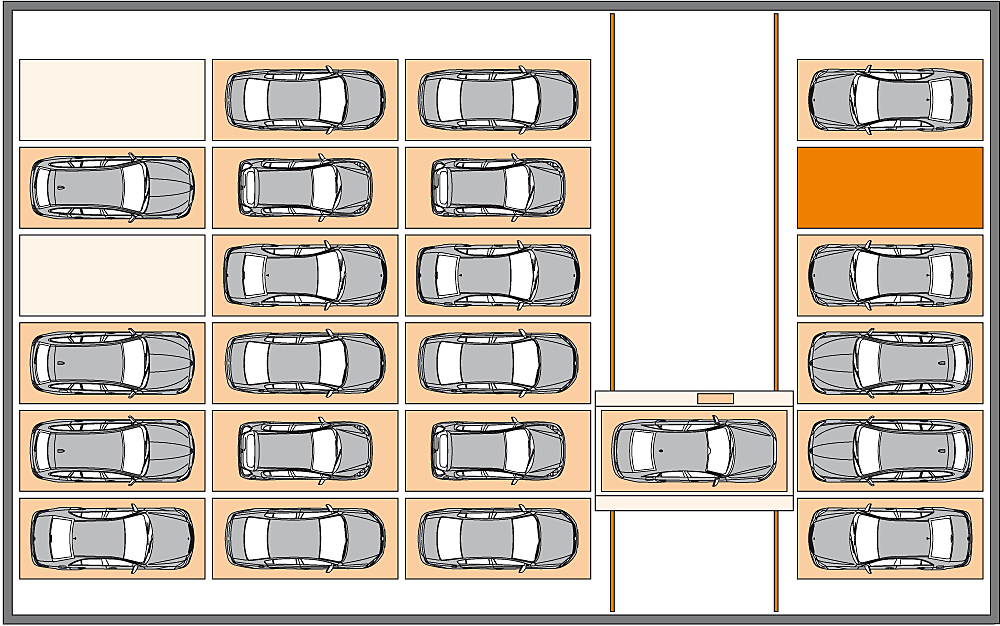

• Horizontal levels: up to 60 parking spaces per parking levels, single or dual-row
• Vehicle measurements: length 520 cm, width 215 cm
  (other dimensions are optionally available),
  height required, can also handle two different vehicles heights
• Feasible standard version: 2.500 kg per parking space, higher loads
  can be accommodate on request by option
• Lift: with horizontal and vertical conveyor unit
• Shuttle: horizontal allocation of vehicles within the parking level
• Control: access control via transponder, remote control

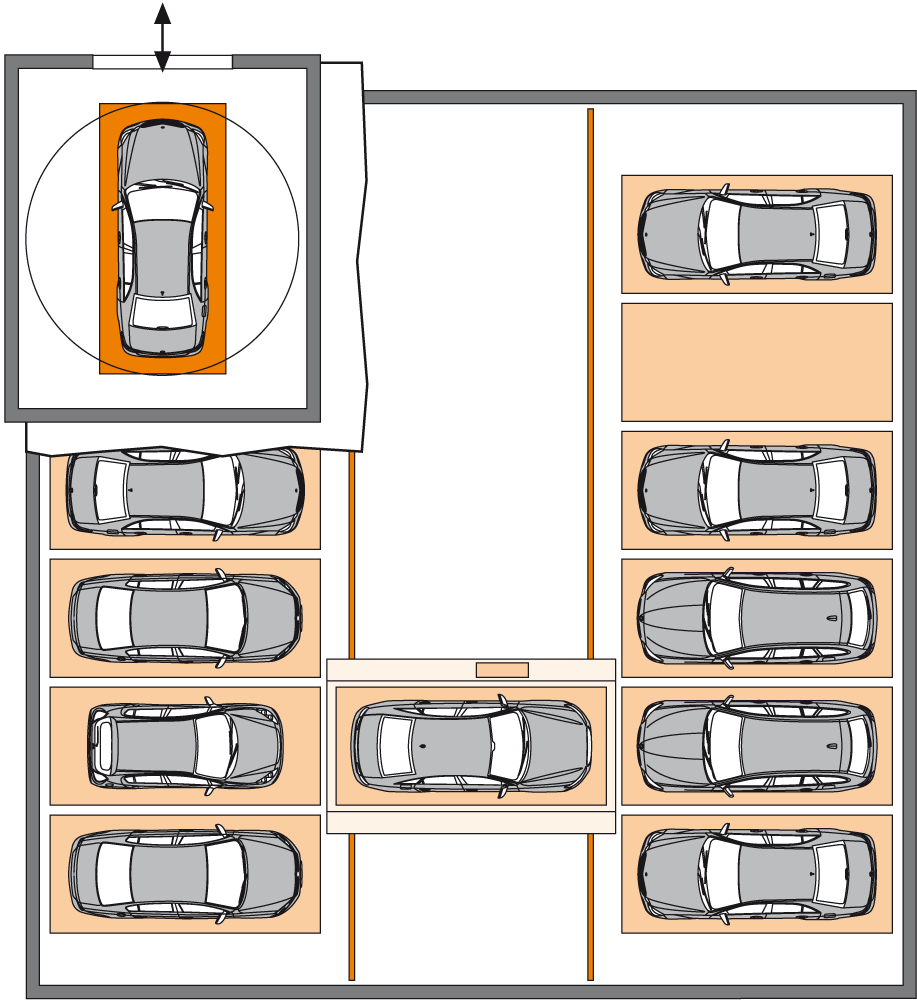

• Transfer cabin: Arrangement on the ground floor or in the basement,
  several transfers cabins are possible
• Vehicle turntable optionally available

KEY ADVANTAGES AT A GLANCE

• Optimal access times
• Accommodates vehicles in safety
• Anti-theft and damage protection
• Safe access to car park without narrow ramps or dark access routes
• Enclosed area can be halved in comparison to conventional parking spaces
• Slashes the space required for ramps and lane widths
• Economising on parking levels and equipment required (lighting, ventilation, sprinklers)
• Reduced construction time
• Exploit the construction space saved for additional parking spaces or for other commercial purposes

FIELD OF APPLICATION

Residential and commercial buildings, semi-detached houses, office buildings, underground parking lot, car parks, long-time parking, short-time parking
